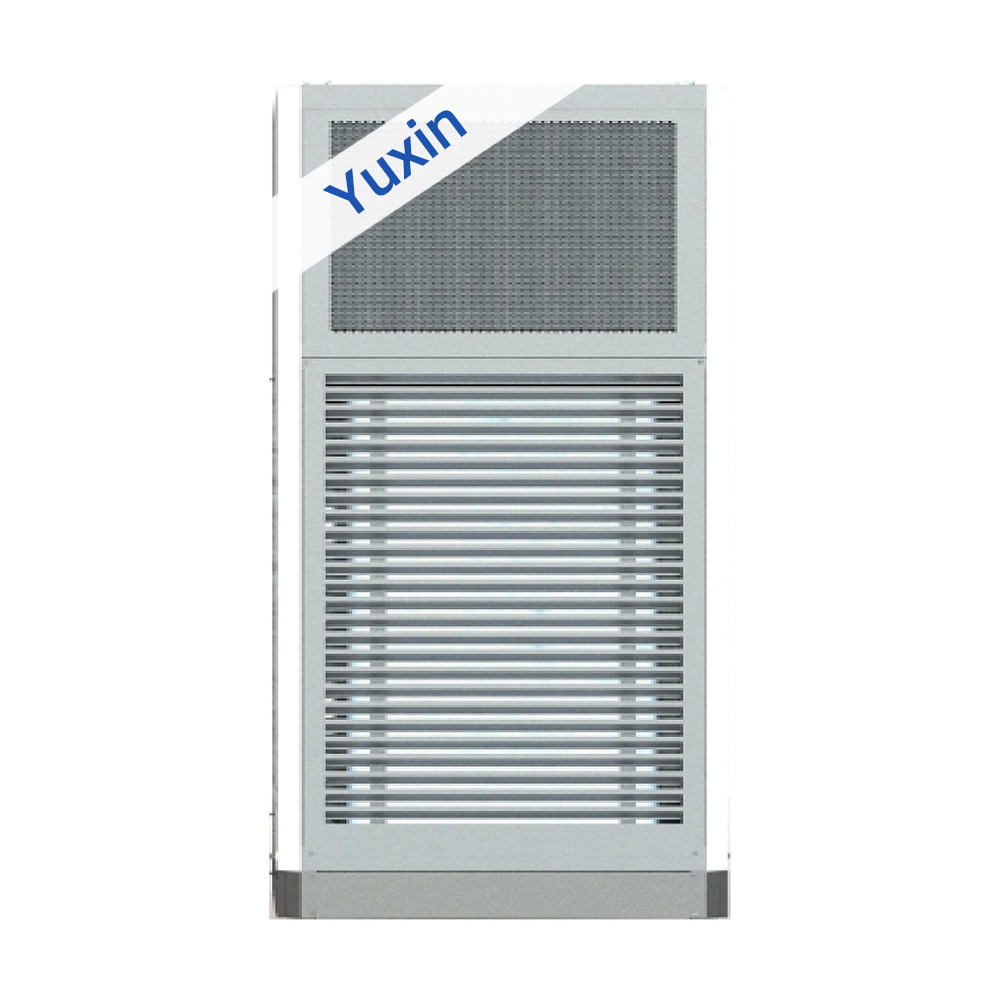

Modular Commercial Energy Storage System P01- EC60-30K (2).jpg

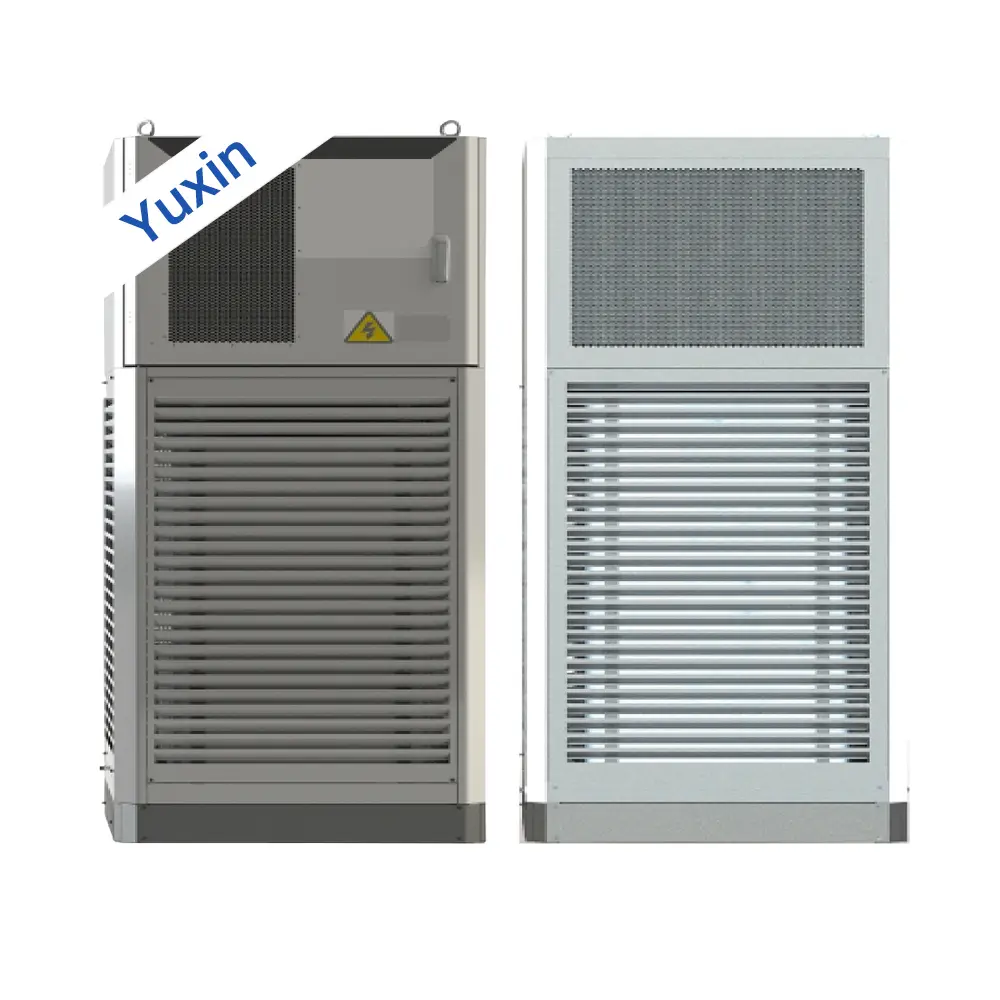

Modular Commercial Energy Storage System P01- EC60-30K (3).jpg

Modular Commercial Energy Storage System P01- EC60-30K

Short description:

Brand: Yuxin /Customized Logo

Item no: YX- P01- EC60-30K

Support the Off-grid function

Oil-engine hybrid mode

Three-phase independent grid connection control technology

Phase number: Three-phase inverter

150% overload capacity

20 AC/DC units connected in parallel

Virtual synchronous generator

Warranty: 5/7/10 years

Leading time: 15 working days after receiving the deposit

Payment: L/C T/T

product details

description1

Key features

All-in-one design, integrated EMS, grid-connected and off-grid switching device, supporting oil engine hybrid three-phase independent grid connection control technology

Real-time data monitoring and fault recording, Early warning, and fault location

Standardized design facilitates transportation and reduces installation costs.

Pack-level fire protection

Supports flexible expansion with multiple machines in parallel

Application scenarios

Commercial and industrial energy storage is a typical application of distributed energy storage systems on the user side. These systems primarily consist of photovoltaic modules, photovoltaic-storage integrated units, lithium-ion battery packs, and loads, often designed with a modular, scalable architecture.

Key application scenarios include commercial and industrial energy storage combined with emergency backup power, small-to-medium-sized photovoltaic-storage hybrid microgrids, mobile energy storage, and photovoltaic-storage microgrids. New application scenarios are emerging in oil fields, farm villas, data centers, 5G base stations, heavy-duty truck battery swapping, port shore power, small island microgrids, and battery reuse.

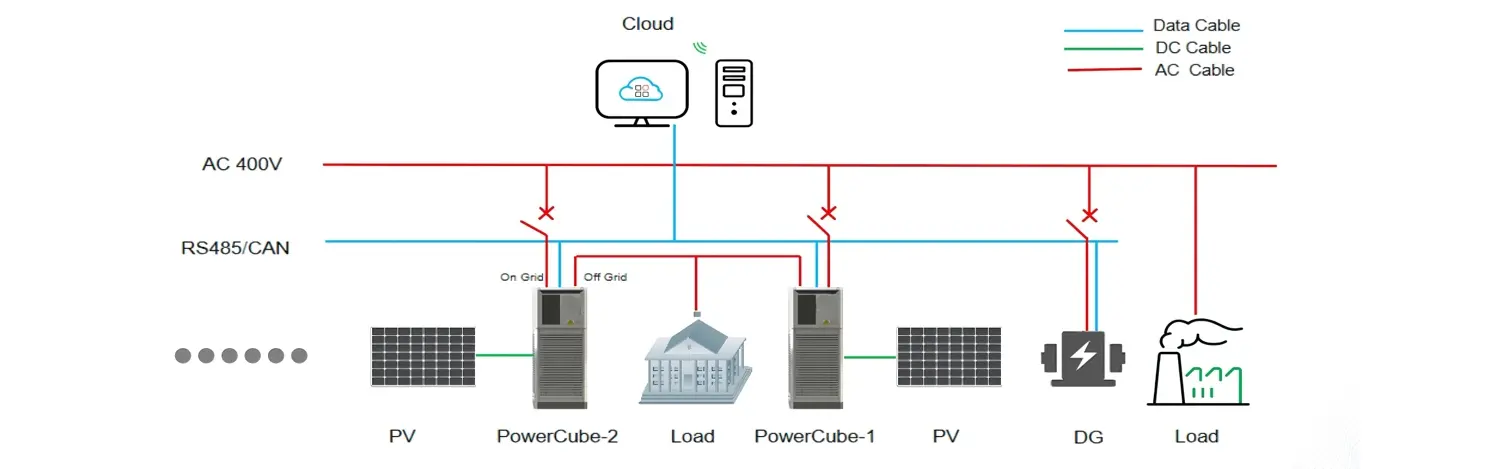

Application modes include grid-connected mode, off-grid mode, and integrated grid-connected/off-grid mode. The system includes a grid-connected/off-grid switching device and supports diesel generator hybrid operation. The primary electrical system architectures are AC-coupled and DC-coupled, supporting parallel operation on both AC and DC sides.

Industrial and commercial energy storage + emergency backup power

Small and medium-sized photovoltaic storage diesel microgrid

Portable energy storage

Microgrid with energy storage

Parameter performance

Battery parameters
Battery cell type	LFP100Ah
PACK	5.12KWh/1P16
Battery system	61.44KWh/1P192S
Rated voltage	614.4V
Voltage range	537.6V-691.2V
Rated charge and discharge current	50A
PV parameters
Maximum power	19.2KW+19.2KW
Maximum PV input voltage	850V
PV start-up voltage	250V
MPPT voltage range	200V-830V
Maximum PV current	32A+32A
Alternating current side (grid connection)
Rated power	30KVA
Rated current	43.5A
Rated grid voltage	400V/230V voltage range (-20%-15%)
Power grid frequency range	50Hz/47Hz~52Hz，60Hz/57Hz~62Hz
Current harmonic	<5% (greater than 30% load)
Power factor	-0.8~0.8
Alternating current side (off-grid)
Output power	30KVA (33KVA max)
Output current	43.5A (48A max)
Rated voltage	400/230 VAC 50/60Hz
Output overload	48A<Iload≤54A/100s， 54A<Iload≤65A/100ms
System parameters
Dimensions	839mm885mm2151mm
Protection grade	IP54
Altitude	3000m
Temperature and humidity	-30°C-50°C/ 0-95%
Cooling method	Forced air cooling
Communication interface	EMS:RS485/ Battery:CAN/RS485
Communication protocol	ModBus TCP(Customizable)
