240W High Efficiency Waterproof Power Emergency Camping for Small Power Station Generator Phones
Short description:
description1

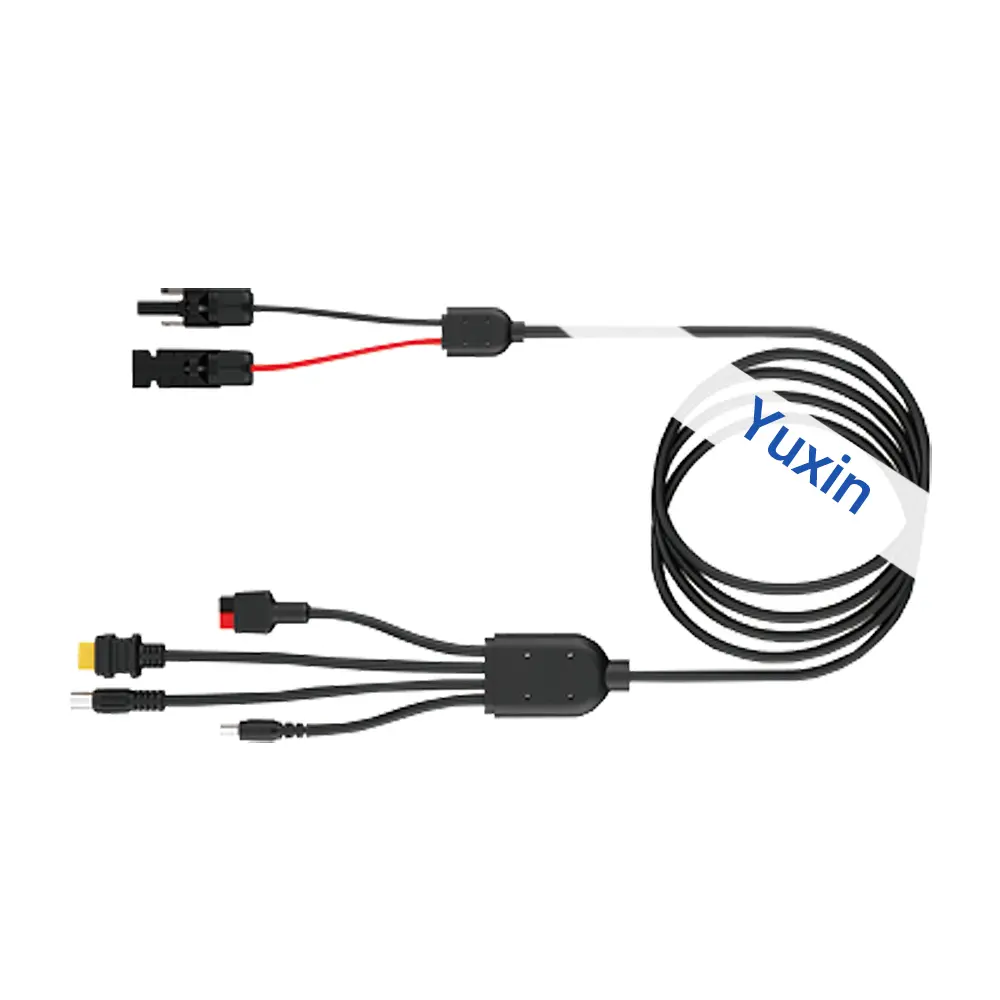

Solar panel charger suitable for power stations: built-in 20.9V DC output, equipped with a universal solar connector, providing a green power emergency solution. Can directly charge small to medium-sized solar generators under sunlight, such as RIVER/RIVER2, EB3A, EB70S, Explorer 160/240/300/500, Anker 521, etc. This product does not include the DC7909 (8mm) or XT60 Anderson cable in the packaging. If your power station uses a DC 7909 or Anderson solar input interface, please purchase a solar charging cable separately.
Outdoor solar panels: Made from A+ grade monocrystalline silicon material, efficiently converting solar energy into electricity with a conversion rate of up to 24%. Utilizes ETFE film lamination and encapsulation technology, offering wear-resistant, self-cleaning, and weather-resistant performance with an IP68 protection rating. Superior waterproof and dustproof performance ensures the solar charging panel is durable, capable of operating normally in harsh weather conditions, and easy to clean.

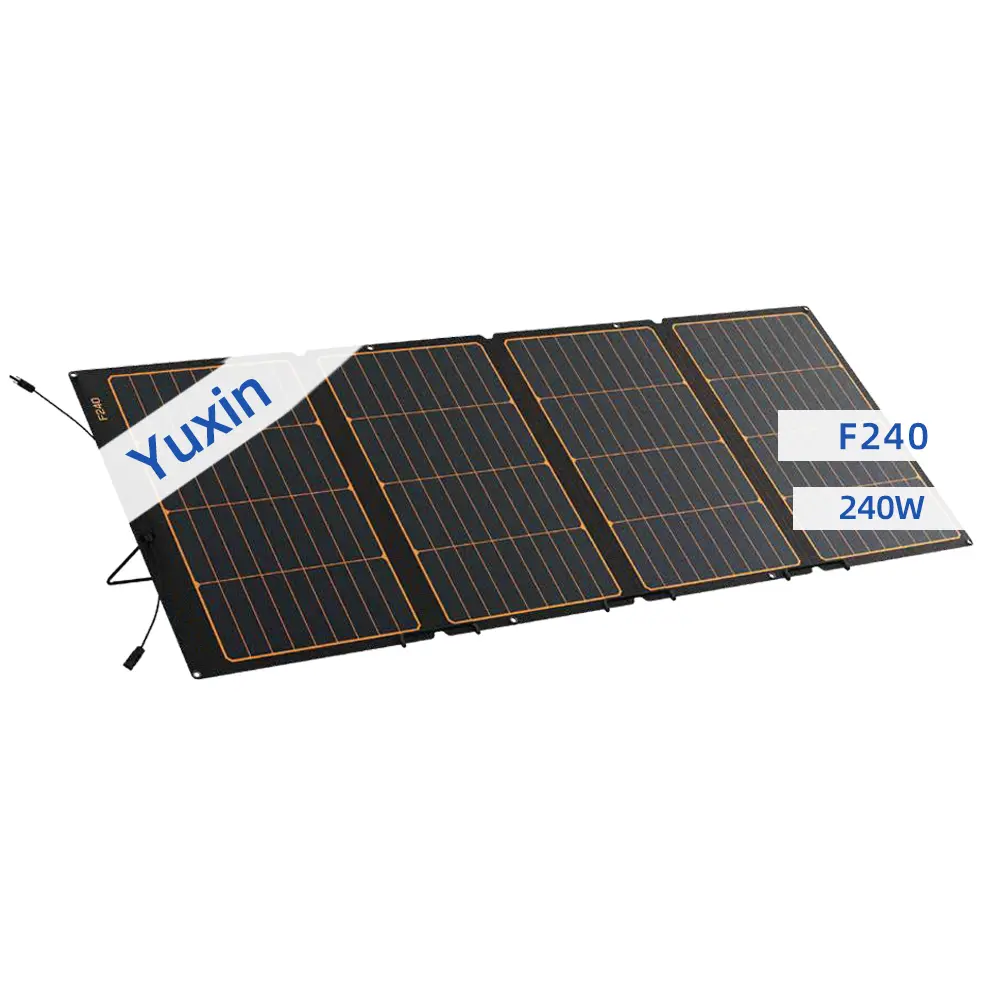

Foldable portable solar panel: Features three foldable panels and a carry case design, making it easy to unfold, carry, and store. When unfolded, the dimensions are 79.4 x 31.1 x 0.1 inches, and when folded, the dimensions are 31.1 x 21.2 x 1.5 inches. The weight, including the junction box, is 22 pounds (10 kilograms). The 120W solar panel is suitable for camping, RV travel, road trips, and emergency power supply for homes, maintaining portability when more power is needed.
Smart charging: The built-in smart chip automatically identifies connected devices and adjusts the output current for the fastest charging speed. The included LED indicator displays the charging status. When the indicator is red, the solar panel is ready to charge devices. The charging design includes overcurrent, overheat, and short-circuit protection features to ensure safe charging.

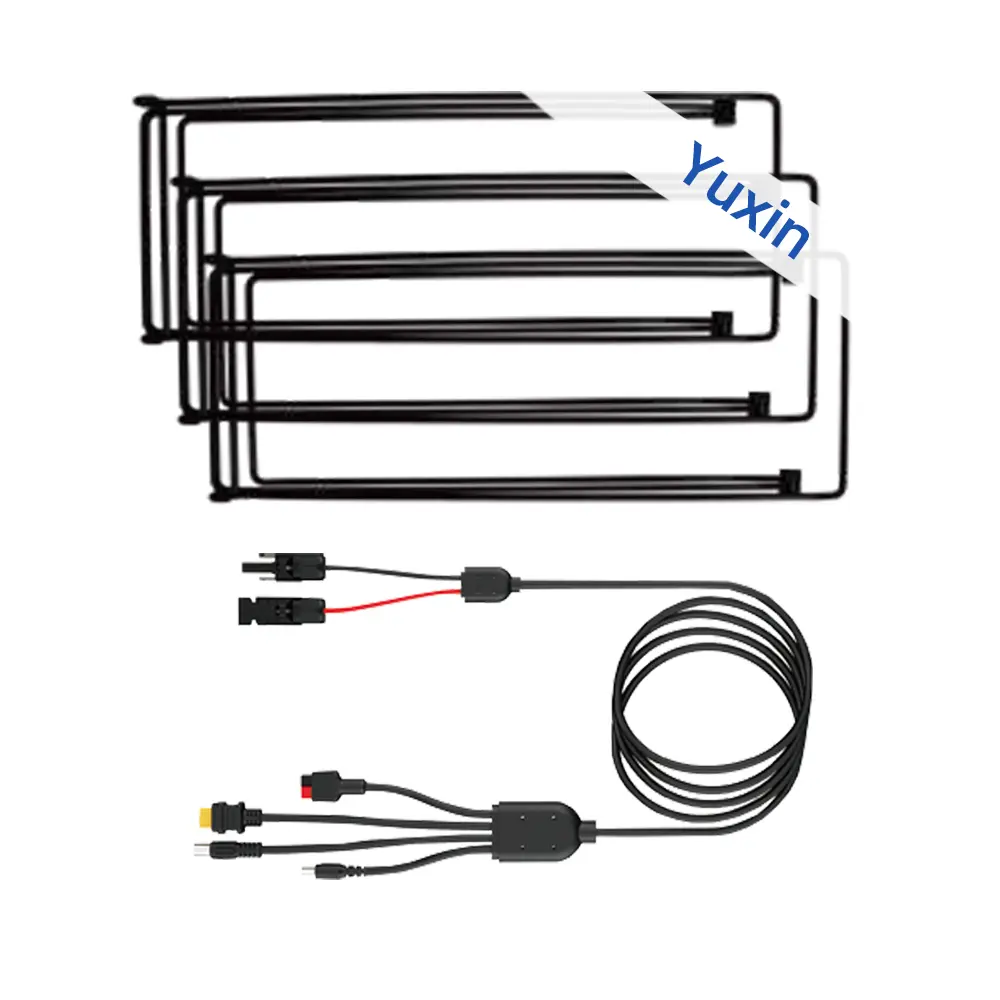

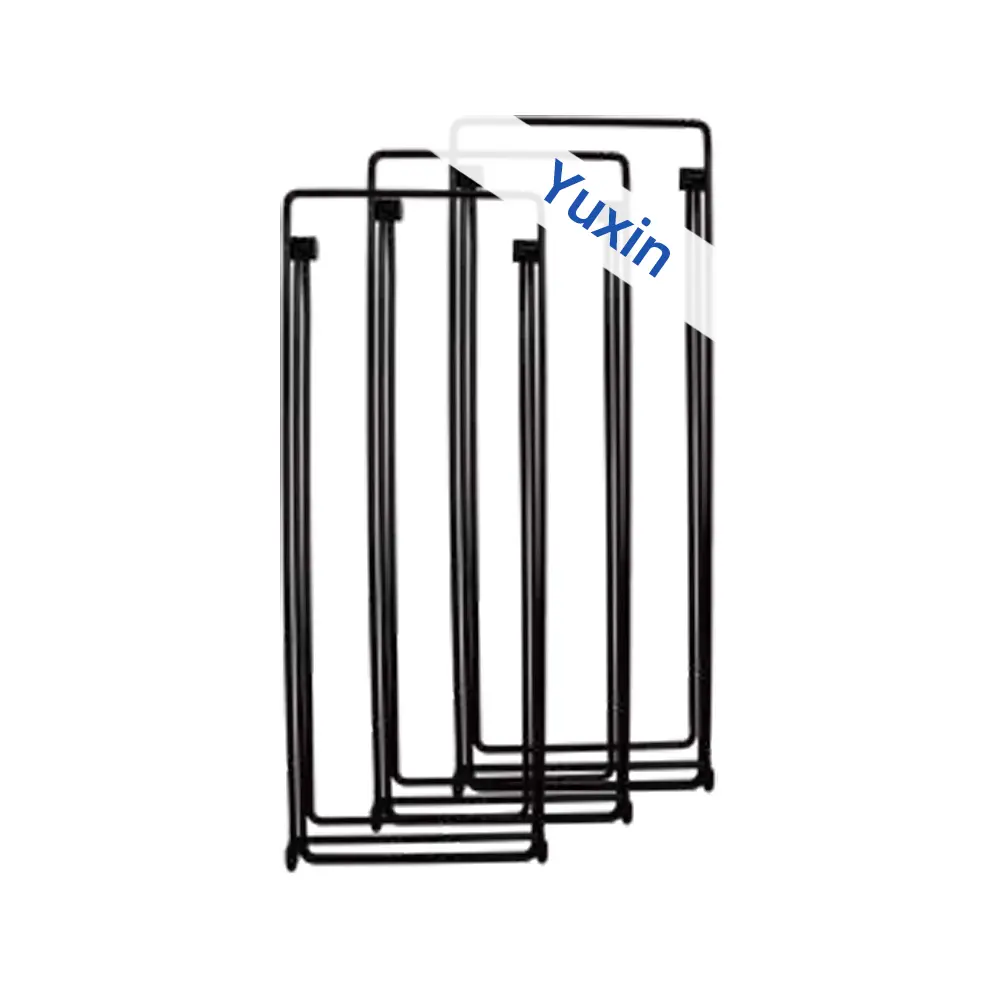

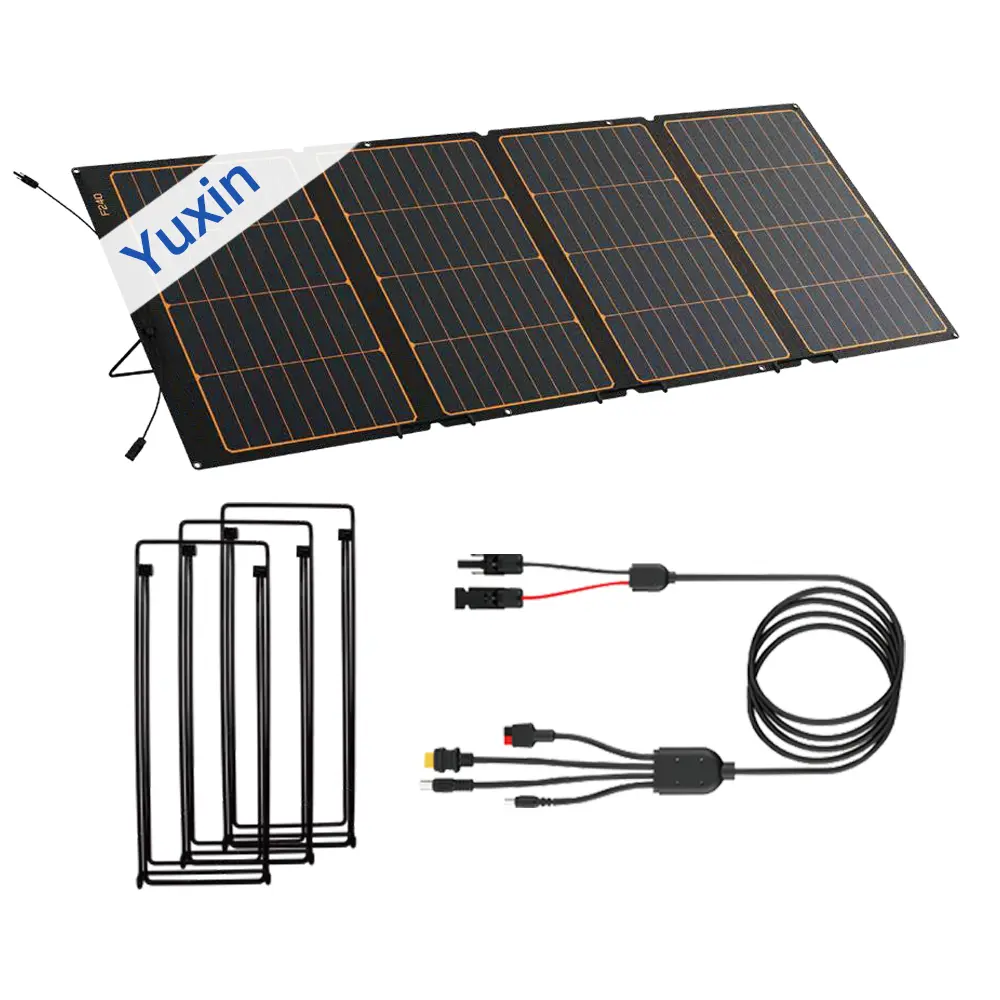

Customer service and packaging: You will receive 1 x 240W solar panel, 4 x clips, and 2 x folding stands. If you encounter any issues, please contact us at any time, and we will respond within 24 hours.
| Product Parameters | |
| Model | F240 |
| Peak power | 240w |
| Output port | MC4 |
| Dimensions | 2017*791*3.5mm (unfolded) 791*538*37mm (folded) |
| Net weight | 22Lbs/10kg with junction box and accessories |
| Maximum Power Voltage | 20.9V |
| Maximum Power Current | 11.5A |
| Certificate |
|
| Electrical Specifications | |
| Rated Peak Power (Pmax) | 240 W |
| Open Circuit Voltage (Voc) | 25.1 V |
| Short Circuit Current (Isc) | 11.9 A |
| MaximumPowerVoltage(Vmp) | 20.9 V |
| Maximum Power Current (Imp) | 11.5 A |
| Operating Temperature | -4°F to 149°F (-20°C to 65°C) |
| Application Level | Class A |
| Temperature Coefficient (Pmax) | -0.45%/K |
| Temperature Coefficient (Voc) | -0.32%/K |
| Temperature Coefficient (Isc) | +0.02%/K |
| Standard Test Conditions | 1000W/m2, 25°C, AM1.5 |
| Junction Box | IP68 rated in accordance with UL 3730 Out puts: MC4 |
| Design Features | Can be unfolded and placed flat on the ground and folded Unfold the bracket and place the panel on the folding bracket or use the hook to hang the panel. |
