10W High Efficiency Waterproof Camping Backpacking Hiking for Cell Phone Power Banks
Short description:
description1

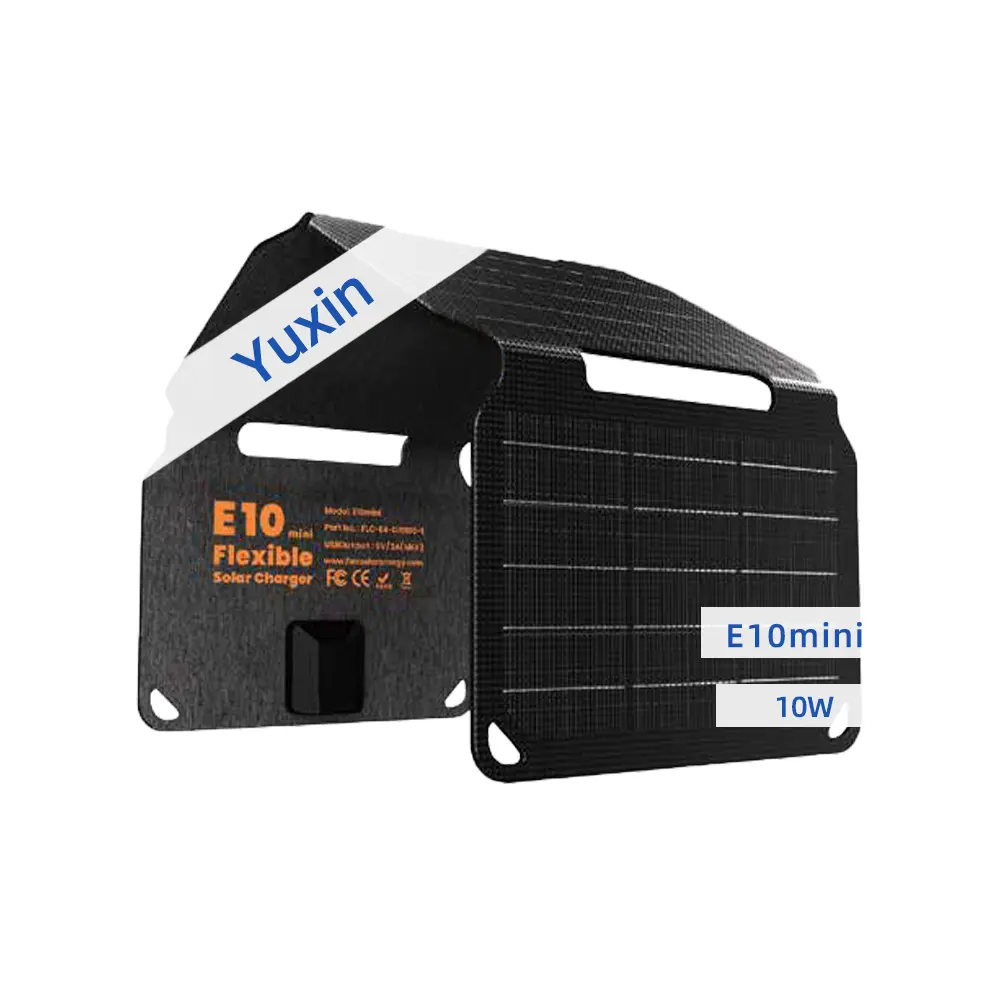

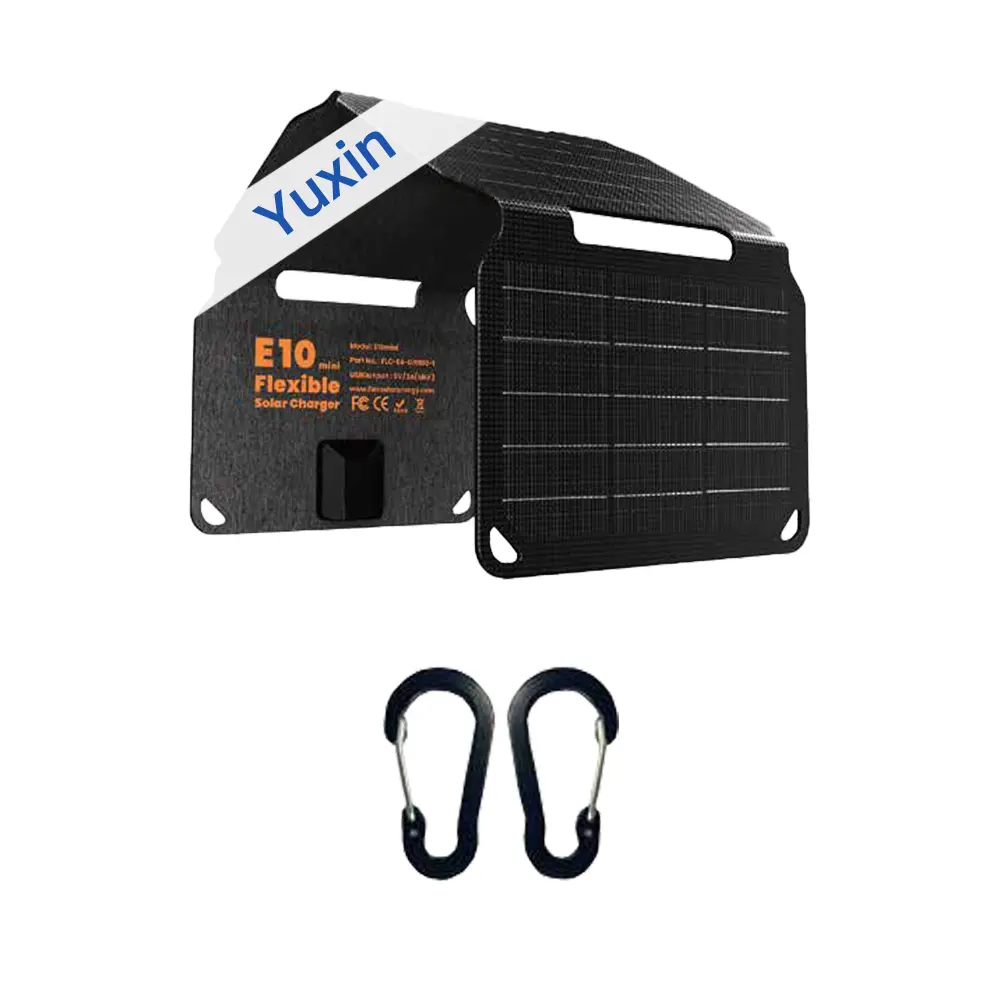

This solar charger features a compact, three-fold design, measuring 7.6 x 8.8 x 0.7 inches when folded and 15.5 x 8.8 inches when unfolded, weighing just 0.66 pounds (300 grams), making it ideal for outdoor adventures such as hiking, camping, and emergency situations. It features an integrated USB-A port (maximum output 5V/2A), enabling direct charging of smartphones (iOS/Android systems), tablets, small portable power banks (capacity <10,000mAh), USB fans, flashlights, smartwatches, portable Wi-Fi routers, and other low-power devices using sunlight. Note: This charger does not have energy storage functionality, and charging speed may vary depending on the device's capacity.
The product uses weather-resistant ETFE film lamination technology and high-efficiency monocrystalline A+ solar cells, achieving an energy conversion rate of up to 24%. Durability is also considered in the design, with IP67-rated durability ensuring reliable operation in harsh environments. However, please note that the junction box is not waterproof.
Additionally, the solar charger is equipped with advanced IC chips that can intelligently identify connected devices and optimize charging efficiency. Safety protection features (such as overcurrent, overheat, and short-circuit protection) and integrated LED indicator lights display the charging status in real-time, ensuring 100% safe charging.
Finally, to optimize charging efficiency, it is recommended to avoid charging through glass surfaces, as light scattering can reduce panel efficiency. Please use it under direct sunlight whenever possible, as the maximum output power is 10W under such conditions.
| Product Parameters | |
| Model | E10 Mini |
| Peak power | 10w |
| Output port | USB-A: 5V-2A (MAX) |
| Dimensions | 493*161*13mm (unfolded) 121*161*25mm (folded) |
| Net weight | 0.45Lbs/0.2kg |
| Certificate |
|
| Electrical Specifications | |
| Rated Peak Power (Pmax |W) | 10 W |
| Open Circuit Voltage (Voc | V) | 6.6 V |
| Short Circuit Current (Isc |A) | 1.9 A |
| Maximum Power Voltage (Vmp| V) | 5.5 V |
| Maximum Power Current (Imp |A) | 1.8 A |
| Module Efficiency (%) | 24% |
| Solar Cell Type | Monocrystalline |
| Controller Box | IP67 rated in accordance with UL. Output port: USB 2.0 5V/2A Max |
| Charging Time | USB 2.0 port: 1.5-2.3 hrs (charge iPhone 12 pro); 2.1-3.2 hrs (charge Galaxy S21 ) |
